BasePhysics implementation that stores differentiable states in gretl for checkpointed reverse solves. More...

#include <differentiable_physics.hpp>

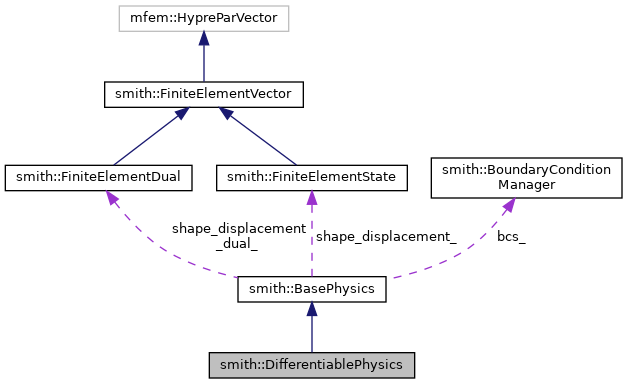

Collaboration diagram for smith::DifferentiablePhysics:

[legend]

Public Member Functions
	DifferentiablePhysics (std::shared_ptr< Mesh > mesh, std::shared_ptr< gretl::DataStore > graph, const FieldState &shape_disp, const std::vector< FieldState > &states, const std::vector< FieldState > &params, std::shared_ptr< StateAdvancer > advancer, std::string physics_name, const std::vector< ReactionInfo > &reaction_infos={})
	Construct a differentiable physics wrapper around a state advancer and its tracked fields. More...

	~DifferentiablePhysics ()
	Destructor.

void	resetStates (int cycle=0, double time=0.0) override
	Base method to reset physics states to the initial time. This does not reset design parameters or shape. More...

virtual void	resetAdjointStates () override
	Base method to reset physics states back to the end of time to start adjoint calculations again. This does not reset design parameters or shape. More...

void	completeSetup () override
	Complete the setup and allocate the necessary data structures. More...

std::vector< std::string >	stateNames () const override
	Get a vector of the finite element state primal solution names. More...

std::vector< std::string >	parameterNames () const override
	Get a vector of the finite element state parameter names. More...

std::vector< std::string >	dualNames () const override
	Get a vector of the finite element state dual (reaction) solution names. More...

const FiniteElementState &	state (const std::string &state_name) const override
	Accessor for getting named finite element state primal solution from the physics modules. More...

const FiniteElementDual &	dual (const std::string &dual_name) const override
	Accessor for getting named finite element state dual (reaction) solution from the physics modules. More...

const FiniteElementState &	shapeDisplacement () const override
	Accessor for getting the shape displacement field from the physics modules. More...

const FiniteElementState &	parameter (std::size_t parameter_index) const override
	Accessor for getting indexed finite element state parameter fields from the physics modules. More...

const FiniteElementState &	parameter (const std::string &parameter_name) const override
	Accessor for getting named finite element state parameter fields from the physics modules. More...

FiniteElementState	loadCheckpointedState (const std::string &state_name, int cycle) override
	Return a state for a stored checkpoint cycle. More...

FiniteElementDual	loadCheckpointedDual (const std::string &state_name, int cycle) override
	Accessor for getting a single named finite element dual solution from the physics modules at a given checkpointed cycle index. More...

void	setState (const std::string &state_name, const FiniteElementState &s) override
	Set the primal solution field values of the underlying physics solver. More...

void	setShapeDisplacement (const FiniteElementState &shape_displacement) override
	Set the current shape displacement for the underlying mesh. More...

void	setParameter (const size_t parameter_index, const FiniteElementState &parameter_state) override
	Deep copy a parameter field into the internally-owned parameter used for simulations. More...

void	setAdjointLoad (std::unordered_map< std::string, const smith::FiniteElementDual & > string_to_dual) override
	Set the loads for the adjoint reverse timestep solve. More...

void	setDualAdjointBcs (std::unordered_map< std::string, const smith::FiniteElementState & > string_to_bc) override
	Set the dual loads (dirichlet values) for the adjoint reverse timestep solve This must be called after setAdjointLoad. More...

const FiniteElementState &	adjoint (const std::string &adjoint_name) const override
	Accessor for getting named finite element state adjoint solution from the physics modules. More...

virtual void	advanceTimestep (double dt) override
	Advance the state variables according to the chosen time integrator. More...

void	reverseAdjointTimestep () override
	Reverse one recorded timestep through the gretl graph. More...

FiniteElementDual	computeTimestepSensitivity (size_t parameter_index) override
	Compute the implicit sensitivity of the quantity of interest used in defining the adjoint load with respect to the parameter field (d QOI/d state * d state/d parameter). More...

const FiniteElementDual &	computeTimestepShapeSensitivity () override
	Compute the implicit sensitivity of the quantity of interest used in defining the adjoint load with respect to the shape displacement field (d QOI/d state * d state/d shape displacement). More...

const std::unordered_map< std::string, const smith::FiniteElementDual & >	computeInitialConditionSensitivity () const override
	Compute the implicit sensitivity of the quantity of interest with respect to the initial condition fields. More...

std::vector< FieldState >	getInitialFieldStates () const
	Get the initial state fields captured before any timesteps were advanced. More...

std::vector< FieldState >	getFieldStates () const
	Get the current primal state fields. More...

std::vector< FieldState >	getFieldParams () const
	Get all the parameter FieldStates.

std::vector< FieldState >	getFieldStatesAndParamStates () const
	Get the tracked state fields followed by the tracked parameter fields. More...

FieldState	getShapeDispFieldState () const
	Get the tracked shape displacement field. More...

std::vector< ReactionState >	getReactionStates () const
	Get the current differentiable reaction outputs. More...

std::shared_ptr< StateAdvancer >	getStateAdvancer () const
	Get the state advancer used for forward solves. More...

Public Member Functions inherited from smith::BasePhysics
	BasePhysics (std::string physics_name, std::shared_ptr< smith::Mesh > mesh, int cycle=0, double time=0.0, bool checkpoint_to_disk=false)
	Empty constructor. More...

	BasePhysics (BasePhysics &&other)=default
	Construct a new Base Physics object (copy constructor) More...

virtual double	time () const
	Get the current forward-solution time. More...

virtual int	cycle () const
	Get the current forward-solution cycle iteration number. More...

virtual double	maxTime () const
	Get the maximum time reached by the forward solver. More...

virtual double	minTime () const
	Get the initial time used by the forward solver. More...

virtual int	maxCycle () const
	The maximum cycle (timestep iteration number) reached by the forward solver. More...

virtual int	minCycle () const
	Get the initial cycle (timestep iteration number) used by the forward solver. More...

bool	isQuasistatic () const
	Check if the physics is setup as quasistatic. More...

virtual const std::vector< double > &	timesteps () const
	Get a vector of the timestep sizes (i.e. \(\Delta t\)s) taken by the forward solver. More...

virtual std::vector< std::string >	adjointNames () const
	Get a vector of the finite element state adjoint solution names. More...

virtual const FiniteElementState &	dualAdjoint (const std::string &dual_name) const
	Accessor for getting named finite element state dual adjoint (reaction adjoint load) from the physics modules. More...

virtual void	outputStateToDisk (std::optional< std::string > paraview_output_dir={}) const
	Output the current state of the PDE fields in Sidre format and optionally in Paraview format if `paraview_output_dir` is given. More...

void	loadCheckpointedStatesFromDisk (int cycle)
	load checkpointed states from disk into states array More...

virtual FiniteElementDual	loadCheckpointedDual ([[maybe_unused]] const std::string &state_name, [[maybe_unused]] int cycle)
	Accessor for getting a single named finite element dual solution from the physics modules at a given checkpointed cycle index. More...

virtual double	getCheckpointedTimestep (int cycle) const
	Get a timestep increment which has been previously checkpointed at the give cycle. More...

virtual void	initializeSummary (axom::sidre::DataStore &datastore, const double t_final, const double dt) const
	Initializes the Sidre structure for simulation summary data. More...

virtual void	saveSummary (axom::sidre::DataStore &datastore, const double t) const
	Saves the summary data to the Sidre Datastore. More...

virtual	~BasePhysics ()=default
	Destroy the Base Solver object.

const smith::Mesh &	mesh () const
	Returns a reference to the mesh object.

const mfem::ParMesh &	mfemParMesh () const
	Returns a reference to the mfem ParMesh object.

mfem::ParMesh &	mfemParMesh ()
	Returns a reference to the mfem ParMesh object.

std::string	name () const
	Return the name of the physics.

Additional Inherited Members
Protected Member Functions inherited from smith::BasePhysics
const FiniteElementDual &	shapeDisplacementSensitivity () const
	Internally used accessor for getting the shape displacement sensitivity from the physics modules. More...

void	CreateParaviewDataCollection () const
	Create a paraview data collection for the physics package if requested.

void	UpdateParaviewDataCollection (const std::string &paraview_output_dir) const
	Update the paraview states, duals, parameters, and metadata (cycle, time) in preparation for output. More...

void	initializeBasePhysicsStates (int cycle, double time)
	Protected, non-virtual method to reset physics states to zero. This does not reset design parameters or shape. More...

std::unordered_map< std::string, FiniteElementState >	getCheckpointedStates (int cycle)
	Accessor for getting all of the primal solutions from the physics modules at a given checkpointed cycle index. More...

Protected Attributes inherited from smith::BasePhysics
std::string	name_ = {}
	Name of the physics module.

std::shared_ptr< smith::Mesh >	mesh_
	The primary mesh.

MPI_Comm	comm_
	The MPI communicator.

std::vector< const smith::FiniteElementState * >	states_
	List of finite element primal states associated with this physics module.

std::vector< const smith::FiniteElementState * >	adjoints_
	List of finite element adjoint states associated with this physics module.

std::vector< const smith::FiniteElementDual * >	duals_
	List of finite element duals associated with this physics module.

std::vector< const smith::FiniteElementState * >	dual_adjoints_
	List of adjoint finite element duals associated with this physics module.

std::vector< ParameterInfo >	parameters_
	A vector of the parameters associated with this physics module.

std::unordered_map< std::string, std::vector< smith::FiniteElementState > >	checkpoint_states_
	A map containing optionally in-memory checkpointed primal states for transient adjoint solvers.

std::unordered_map< std::string, smith::FiniteElementState >	cached_checkpoint_states_
	A container relating a checkpointed cycle and the associated finite element state fields. More...

std::optional< int >	cached_checkpoint_cycle_
	An optional int for disk-based checkpointing containing the cycle number of the last retrieved checkpoint.

bool	is_quasistatic_ = true
	Whether the simulation is time-independent.

double	time_
	Current time for the forward pass.

double	dt_
	Current time step.

double	max_time_
	The maximum time reached for the forward solver.

double	min_time_
	The time the forward solver was initialized to.

std::vector< double >	timesteps_
	A vector of the timestep sizes (i.e. \(\Delta t\)) taken by the forward solver.

int	cycle_
	Current cycle (forward pass time iteration count)

int	max_cycle_
	The maximum cycle (forward pass iteration count) reached by the forward solver.

int	min_cycle_
	The cycle the forward solver was initialized to.

double	ode_time_point_
	The value of time at which the ODE solver wants to evaluate the residual.

int	mpi_rank_
	MPI rank.

int	mpi_size_
	MPI size.

std::unique_ptr< mfem::ParaViewDataCollection >	paraview_dc_
	DataCollection pointer for optional paraview output.

std::unordered_map< std::string, std::unique_ptr< mfem::ParGridFunction > >	paraview_dual_grid_functions_
	A optional map of the dual names and duals in grid function form for paraview output.

std::unique_ptr< mfem::ParGridFunction >	shape_sensitivity_grid_function_
	A optional view of the shape sensitivity in grid function form for paraview output.

smith::FiniteElementState	shape_displacement_
	The shape displacement field.

smith::FiniteElementDual	shape_displacement_dual_
	The shape displacement field sensitivity.

BoundaryConditionManager	bcs_
	Boundary condition manager instance.

bool	checkpoint_to_disk_
	A flag denoting whether to save the state to disk or memory as needed for dynamic adjoint solves.

Static Protected Attributes inherited from smith::BasePhysics
static constexpr int	FLOAT_PRECISION_ = 8
	Number of significant figures to output for floating-point.

Detailed Description

BasePhysics implementation that stores differentiable states in gretl for checkpointed reverse solves.

Definition at line 31 of file differentiable_physics.hpp.

Constructor & Destructor Documentation

◆ DifferentiablePhysics()

smith::DifferentiablePhysics::DifferentiablePhysics	(	std::shared_ptr< Mesh >	mesh,
		std::shared_ptr< gretl::DataStore >	graph,
		const FieldState &	shape_disp,
		const std::vector< FieldState > &	states,
		const std::vector< FieldState > &	params,
		std::shared_ptr< StateAdvancer >	advancer,
		std::string	physics_name,
		const std::vector< ReactionInfo > &	reaction_infos = `{}`
	)

Construct a differentiable physics wrapper around a state advancer and its tracked fields.

Parameters

mesh	The mesh shared by all tracked fields.
graph	The gretl data store used to record forward operations and replay them in reverse.
shape_disp	The shape displacement field held fixed during a forward solve.
states	The primal state fields advanced by `advancer`.
params	The parameter fields treated as differentiable inputs.
advancer	The algorithm that advances the tracked state fields by one timestep.
physics_name	The `BasePhysics` name for this module.
reaction_infos	Metadata for differentiable dual outputs produced during `advanceTimestep`.

Definition at line 41 of file differentiable_physics.cpp.

Member Function Documentation

◆ adjoint()

const FiniteElementState & smith::DifferentiablePhysics::adjoint ( const std::string & adjoint_name ) const

overridevirtual

Accessor for getting named finite element state adjoint solution from the physics modules.

Parameters

adjoint_name The name of the Finite Element State adjoint solution to retrieve

Returns: The named adjoint Finite Element State

Implements smith::BasePhysics.

Definition at line 227 of file differentiable_physics.cpp.

◆ advanceTimestep()

void smith::DifferentiablePhysics::advanceTimestep ( double dt )

overridevirtual

Advance the state variables according to the chosen time integrator.

Advance the underlying ODE with the requested time integration scheme using the previously set timestep.

Parameters

dt	The increment of simulation time to advance the underlying physical system

Implements smith::BasePhysics.

Definition at line 234 of file differentiable_physics.cpp.

◆ completeSetup()

void smith::DifferentiablePhysics::completeSetup ( )

overridevirtual

Complete the setup and allocate the necessary data structures.

This finializes the underlying data structures in a solver and enables it to be run through a timestepping loop.

Implements smith::BasePhysics.

Definition at line 80 of file differentiable_physics.cpp.

◆ computeInitialConditionSensitivity()

const std::unordered_map< std::string, const smith::FiniteElementDual & > smith::DifferentiablePhysics::computeInitialConditionSensitivity ( ) const

overridevirtual

Compute the implicit sensitivity of the quantity of interest with respect to the initial condition fields.

Returns: Fields states corresponding to the sensitivities with respect to the initial condition fields

Precondition: reverseAdjointTimestep with an appropriate adjoint load must be called prior to this method as many times as the forward advance is called.

Reimplemented from smith::BasePhysics.

Definition at line 301 of file differentiable_physics.cpp.

◆ computeTimestepSensitivity()

FiniteElementDual smith::DifferentiablePhysics::computeTimestepSensitivity ( size_t parameter_index )

overridevirtual

Compute the implicit sensitivity of the quantity of interest used in defining the adjoint load with respect to the parameter field (d QOI/d state * d state/d parameter).

Parameters

parameter_index the index of the parameter

Returns: The sensitivity of the QOI (given implicitly by the adjoint load) with respect to the parameter

Precondition: completeSetup(), advanceTimestep(), and reverseAdjointTimestep() must be called prior to this method.

Reimplemented from smith::BasePhysics.

Definition at line 290 of file differentiable_physics.cpp.

◆ computeTimestepShapeSensitivity()

const FiniteElementDual & smith::DifferentiablePhysics::computeTimestepShapeSensitivity ( )

overridevirtual

Compute the implicit sensitivity of the quantity of interest used in defining the adjoint load with respect to the shape displacement field (d QOI/d state * d state/d shape displacement).

Returns: The sensitivity with respect to the shape displacement

Precondition: completeSetup(), advanceTimestep(), and reverseAdjointTimestep() must be called prior to this method.

Reimplemented from smith::BasePhysics.

Definition at line 295 of file differentiable_physics.cpp.

◆ dual()

const FiniteElementDual & smith::DifferentiablePhysics::dual ( const std::string & dual_name ) const

overridevirtual

Accessor for getting named finite element state dual (reaction) solution from the physics modules.

Parameters

dual_name The name of the Finite Element State dual solution to retrieve

Returns: The named dual Finite Element State

Reimplemented from smith::BasePhysics.

Definition at line 120 of file differentiable_physics.cpp.

◆ dualNames()

std::vector< std::string > smith::DifferentiablePhysics::dualNames ( ) const

overridevirtual

Get a vector of the finite element state dual (reaction) solution names.

Returns: The dual solution names

Reimplemented from smith::BasePhysics.

Definition at line 109 of file differentiable_physics.cpp.

◆ getFieldStates()

std::vector<FieldState> smith::DifferentiablePhysics::getFieldStates ( ) const

inline

Get the current primal state fields.

Returns: Copies of the tracked state fields at the current cycle.

Definition at line 143 of file differentiable_physics.hpp.

◆ getFieldStatesAndParamStates()

std::vector< FieldState > smith::DifferentiablePhysics::getFieldStatesAndParamStates ( ) const

Get the tracked state fields followed by the tracked parameter fields.

Returns: A concatenated vector of state fields then parameter fields.

Definition at line 311 of file differentiable_physics.cpp.

◆ getInitialFieldStates()

std::vector<FieldState> smith::DifferentiablePhysics::getInitialFieldStates ( ) const

inline

Get the initial state fields captured before any timesteps were advanced.

Returns: Copies of the tracked initial state fields.

Definition at line 139 of file differentiable_physics.hpp.

◆ getReactionStates()

std::vector<ReactionState> smith::DifferentiablePhysics::getReactionStates ( ) const

inline

Get the current differentiable reaction outputs.

Returns: Copies of the current reaction states produced by the last forward advance.

Definition at line 158 of file differentiable_physics.hpp.

◆ getShapeDispFieldState()

FieldState smith::DifferentiablePhysics::getShapeDispFieldState ( ) const

Get the tracked shape displacement field.

Returns: A copy of the shape displacement FieldState.

Definition at line 319 of file differentiable_physics.cpp.

◆ getStateAdvancer()

std::shared_ptr<StateAdvancer> smith::DifferentiablePhysics::getStateAdvancer ( ) const

inline

Get the state advancer used for forward solves.

Returns: The shared state advancer.

Definition at line 162 of file differentiable_physics.hpp.

◆ loadCheckpointedDual()

FiniteElementDual smith::DifferentiablePhysics::loadCheckpointedDual	(	const std::string &	state_name,
		int	cycle
	)

override

Accessor for getting a single named finite element dual solution from the physics modules at a given checkpointed cycle index.

Parameters

state_name	The name of the state to retrieve (e.g. "reaction")
cycle	The cycle to retrieve state from

Returns: The named Finite Element Dual

Definition at line 137 of file differentiable_physics.cpp.

◆ loadCheckpointedState()

FiniteElementState smith::DifferentiablePhysics::loadCheckpointedState	(	const std::string &	state_name,
		int	cycle
	)

overridevirtual

Return a state for a stored checkpoint cycle.

Parameters

state_name	Name of the state to retrieve.
cycle	Cycle index to load.

Returns: A copy of the requested state at the requested cycle.

Note: This implementation only supports the current cycle stored in the gretl checkpoint state.

Reimplemented from smith::BasePhysics.

Definition at line 147 of file differentiable_physics.cpp.

◆ parameter() [1/2]

const FiniteElementState & smith::DifferentiablePhysics::parameter ( const std::string & parameter_name ) const

overridevirtual

Accessor for getting named finite element state parameter fields from the physics modules.

Parameters

parameter_name The name of the Finite Element State parameter to retrieve

Returns: The named parameter Finite Element State

Note: The input parameter name should not contain the base physics name. It should be identical to what is in the physics module constructor argument list.

Reimplemented from smith::BasePhysics.

Definition at line 166 of file differentiable_physics.cpp.

◆ parameter() [2/2]

const FiniteElementState & smith::DifferentiablePhysics::parameter ( std::size_t parameter_index ) const

overridevirtual

Accessor for getting indexed finite element state parameter fields from the physics modules.

Parameters

parameter_index The index of the Finite Element State parameter to retrieve

Returns: The indexed parameter Finite Element State

Reimplemented from smith::BasePhysics.

Definition at line 158 of file differentiable_physics.cpp.

◆ parameterNames()

std::vector< std::string > smith::DifferentiablePhysics::parameterNames ( ) const

overridevirtual

Get a vector of the finite element state parameter names.

Returns: The parameter names

Reimplemented from smith::BasePhysics.

Definition at line 107 of file differentiable_physics.cpp.

◆ resetAdjointStates()

void smith::DifferentiablePhysics::resetAdjointStates ( )

overridevirtual

Base method to reset physics states back to the end of time to start adjoint calculations again. This does not reset design parameters or shape.

Reimplemented from smith::BasePhysics.

Definition at line 98 of file differentiable_physics.cpp.

◆ resetStates()

void smith::DifferentiablePhysics::resetStates	(	int	cycle = `0`,
		double	time = `0.0`
	)

overridevirtual

Base method to reset physics states to the initial time. This does not reset design parameters or shape.

Parameters

[in]	cycle	The simulation cycle (i.e. timestep iteration) to intialize the physics module to
[in]	time	The simulation time to initialize the physics module to

Implements smith::BasePhysics.

Definition at line 86 of file differentiable_physics.cpp.

◆ reverseAdjointTimestep()

void smith::DifferentiablePhysics::reverseAdjointTimestep ( )

overridevirtual

Reverse one recorded timestep through the gretl graph.

Restores the primal state values and adjoint values at the start of the just-reversed step.

Reimplemented from smith::BasePhysics.

Definition at line 256 of file differentiable_physics.cpp.

◆ setAdjointLoad()

void smith::DifferentiablePhysics::setAdjointLoad ( std::unordered_map< std::string, const smith::FiniteElementDual & > string_to_dual )

overridevirtual

Set the loads for the adjoint reverse timestep solve.

Parameters

string_to_dual An unorder map from the state field name string to the finite element adjoint/dual load The adjoint load is d(qoi)/d(state)

Reimplemented from smith::BasePhysics.

Definition at line 198 of file differentiable_physics.cpp.

◆ setDualAdjointBcs()

void smith::DifferentiablePhysics::setDualAdjointBcs ( std::unordered_map< std::string, const smith::FiniteElementState & > string_to_bc )

overridevirtual

Set the dual loads (dirichlet values) for the adjoint reverse timestep solve This must be called after setAdjointLoad.

Parameters

string_to_bc An unorder map from dual name string to finite element adjoint/state boundary condition The adjoint bc is d(qoi)/d(dual)

Reimplemented from smith::BasePhysics.

Definition at line 212 of file differentiable_physics.cpp.

◆ setParameter()

void smith::DifferentiablePhysics::setParameter	(	const size_t	parameter_index,
		const FiniteElementState &	parameter_state
	)

overridevirtual

Deep copy a parameter field into the internally-owned parameter used for simulations.

Parameters

parameter_index	the index of the parameter
parameter_state	the values to use for the specified parameter

Precondition: The discretization space and mesh for this finite element state must be consistent with the arguments provided in the physics module constructor.

The physics module constructs its own parameter FiniteElementState in the physics module constructor. This call sets the internally-owned parameter object by value (i.e. deep copies) from the given argument.

Reimplemented from smith::BasePhysics.

Definition at line 175 of file differentiable_physics.cpp.

◆ setShapeDisplacement()

void smith::DifferentiablePhysics::setShapeDisplacement ( const FiniteElementState & shape_displacement )

overridevirtual

Set the current shape displacement for the underlying mesh.

Parameters

shape_displacement The shape displacement to copy for use in the physics module

This updates the shape displacement field associated with the underlying mesh. Note that the input FiniteElementState is deep copied into the shape displacement object owned by the StateManager.

Reimplemented from smith::BasePhysics.

Definition at line 183 of file differentiable_physics.cpp.

◆ setState()

void smith::DifferentiablePhysics::setState	(	const std::string &	state_name,
		const FiniteElementState &	s
	)

overridevirtual

Set the primal solution field values of the underlying physics solver.

Implements smith::BasePhysics.

Definition at line 188 of file differentiable_physics.cpp.

◆ shapeDisplacement()

const FiniteElementState & smith::DifferentiablePhysics::shapeDisplacement ( ) const

overridevirtual

Accessor for getting the shape displacement field from the physics modules.

Returns: The shape displacement finite element state

Reimplemented from smith::BasePhysics.

Definition at line 156 of file differentiable_physics.cpp.

◆ state()

const FiniteElementState & smith::DifferentiablePhysics::state ( const std::string & state_name ) const

overridevirtual

Accessor for getting named finite element state primal solution from the physics modules.

Parameters

state_name The name of the Finite Element State primal solution to retrieve

Returns: The named primal Finite Element State

Implements smith::BasePhysics.

Definition at line 111 of file differentiable_physics.cpp.

◆ stateNames()

std::vector< std::string > smith::DifferentiablePhysics::stateNames ( ) const

overridevirtual

Get a vector of the finite element state primal solution names.

Returns: The primal solution names

Implements smith::BasePhysics.

Definition at line 105 of file differentiable_physics.cpp.

The documentation for this class was generated from the following files:

src/smith/differentiable_numerics/differentiable_physics.hpp
src/smith/differentiable_numerics/differentiable_physics.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DifferentiablePhysics()

Member Function Documentation

◆ adjoint()

◆ advanceTimestep()

◆ completeSetup()

◆ computeInitialConditionSensitivity()

◆ computeTimestepSensitivity()

◆ computeTimestepShapeSensitivity()

◆ dual()

◆ dualNames()

◆ getFieldStates()

◆ getFieldStatesAndParamStates()

◆ getInitialFieldStates()

◆ getReactionStates()

◆ getShapeDispFieldState()

◆ getStateAdvancer()

◆ loadCheckpointedDual()

◆ loadCheckpointedState()

◆ parameter() [1/2]

◆ parameter() [2/2]

◆ parameterNames()

◆ resetAdjointStates()

◆ resetStates()

◆ reverseAdjointTimestep()

◆ setAdjointLoad()

◆ setDualAdjointBcs()

◆ setParameter()

◆ setShapeDisplacement()

◆ setState()

◆ shapeDisplacement()

◆ state()

◆ stateNames()
