CombinedSystem and combineSystems for composing independent physics into a coupled system. More...
#include <vector>#include <memory>#include <tuple>#include "smith/differentiable_numerics/system_base.hpp"#include "smith/differentiable_numerics/field_store.hpp"

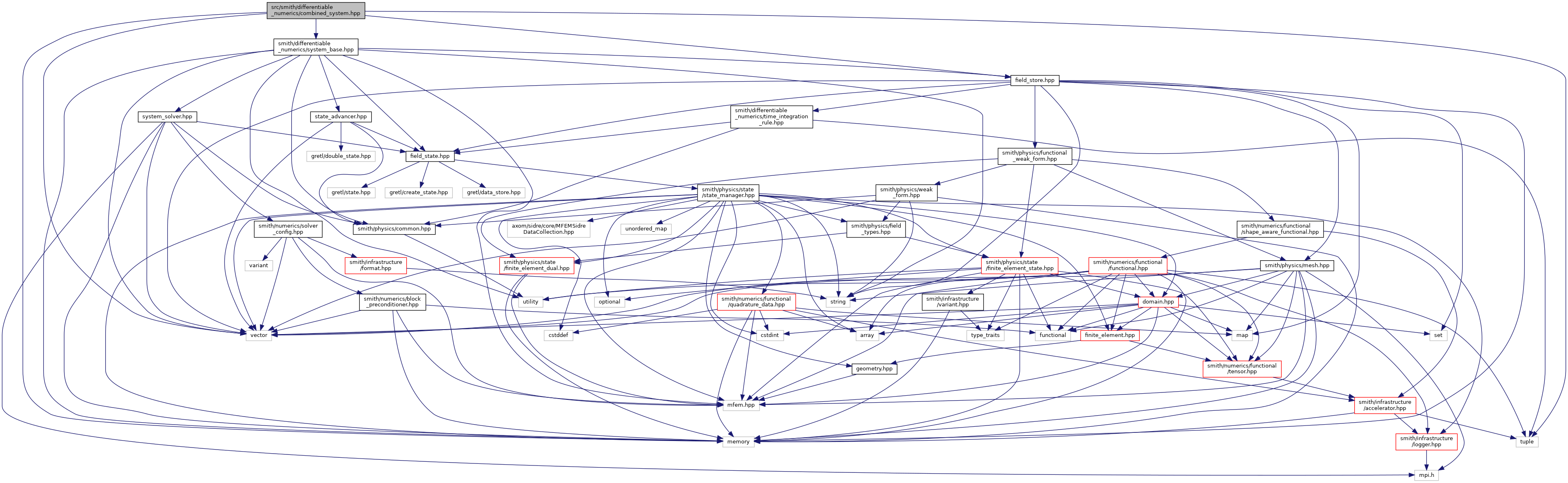

Include dependency graph for combined_system.hpp:

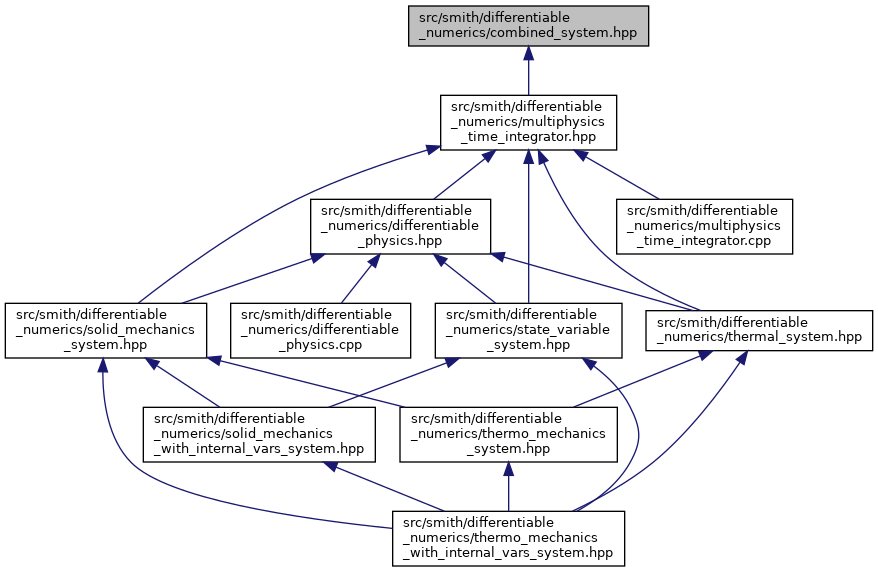

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | smith::CombinedSystem |
| A non-templated system wrapper that combines multiple sub-systems sharing one FieldStore. More... | |
Namespaces | |
| smith | |
| Accelerator functionality. | |
Functions | |
| template<typename... SubSystems> | |
| auto | smith::combineSystems (std::shared_ptr< SubSystems >... subs) |
| Combine two or more independently-built sub-systems into a CombinedSystem. More... | |
| template<typename... SubSystems> | |
| std::shared_ptr< SystemBase > | smith::combineSystems (std::shared_ptr< SystemSolver > solver, std::shared_ptr< SubSystems >... subs) |
| Combine two or more independently-built sub-systems into a single monolithic SystemBase. More... | |
Detailed Description
CombinedSystem and combineSystems for composing independent physics into a coupled system.
Individual physics sub-systems (SolidMechanicsSystem, ThermalSystem, ...) remain authoritative for their own configuration APIs. combineSystems wires them together via a shared FieldStore and provides a coupled setMaterial that registers integrands on both sub-system weak forms.
Usage:
auto field_store = std::make_shared<FieldStore>(mesh, 100, "coupled");
auto solid_fields = registerSolidMechanicsFields<dim, disp_order, DispRule>(field_store);
auto thermal_fields = registerThermalFields<dim, temp_order, TempRule>(field_store);
auto solid_system = buildSolidMechanicsSystem<dim, disp_order, DispRule>(
solid_solver, solid_opts, solid_fields, couplingFields(thermal_fields), param_fields);
auto thermal_system = buildThermalSystem<dim, temp_order, TempRule>(
thermal_solver, thermal_opts, thermal_fields, couplingFields(solid_fields));
auto coupled = combineSystems(solid, thermal);
coupled->setMaterial(thermo_mech_material, domain); // tight coupling
solid->addTraction(right, traction_fn); // loose via sub-system
thermal->addHeatFlux(top, flux_fn);
auto advancer = makeAdvancer(coupled);
auto combineSystems(std::shared_ptr< SubSystems >... subs)
Combine two or more independently-built sub-systems into a CombinedSystem.
Definition: combined_system.hpp:92
auto couplingFields(const PFs &... pfs)
Helper to construct a CouplingFields bundle.
Definition: coupling_params.hpp:94
std::shared_ptr< MultiphysicsTimeIntegrator > makeAdvancer(std::shared_ptr< SystemBase > system)
Build a MultiphysicsTimeIntegrator using the system's own auxiliary systems.
Definition: multiphysics_time_integrator.hpp:64
Definition in file combined_system.hpp.
